SenseCAP Solar Node P1-Pro

$119.00

The SenseCAP Solar Node P1-Pro is a solar-powered Meshtastic/MeshCore node designed for long-term outdoor deployment. It comes with everything you need to get set up right out of the box, including four 18650 batteries, a GPS module, and pre-flashed and configured with your firmware of choice.

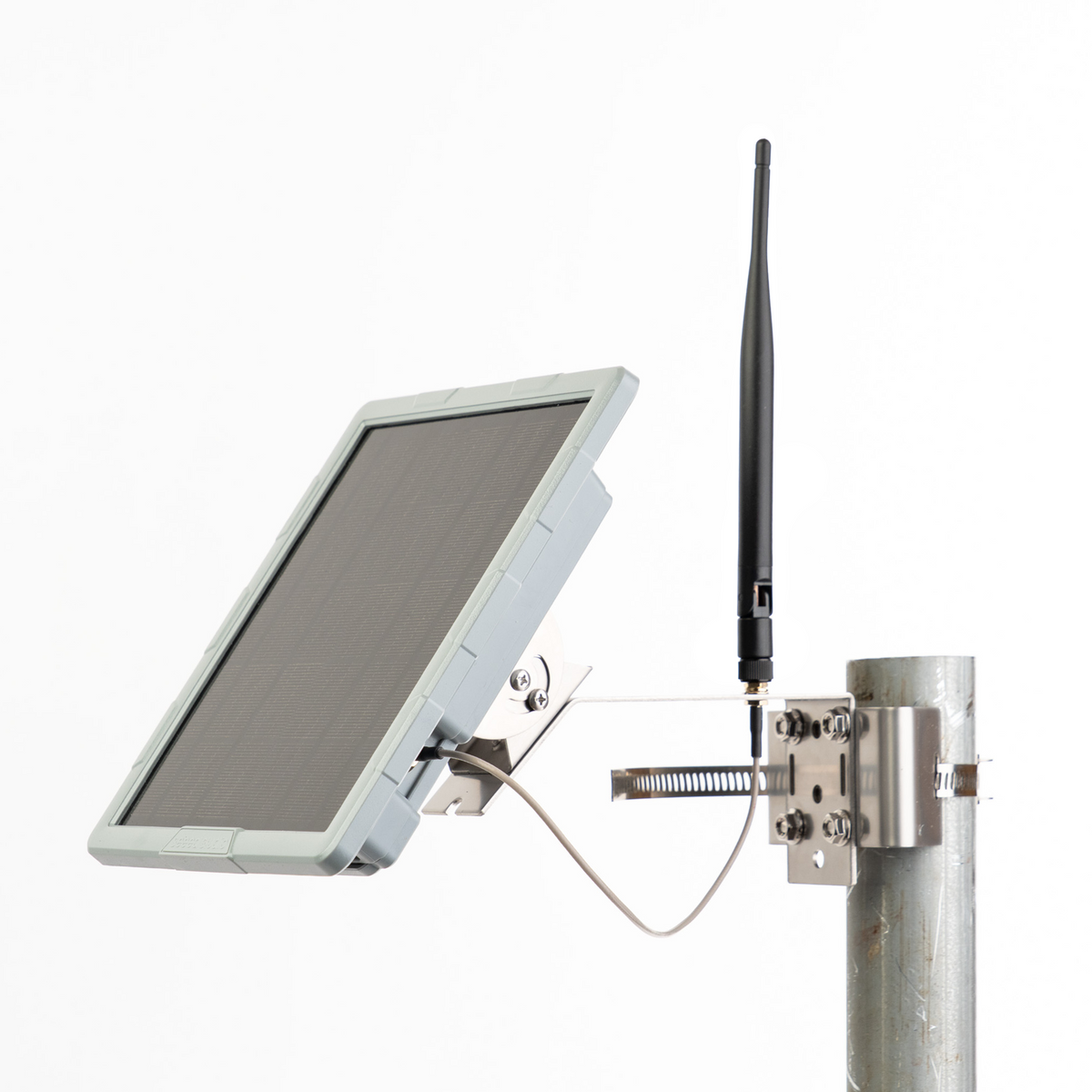

Mount it on a pole or wall to extend your mesh network's range and reliability. The integrated 5W solar panel keeps the batteries topped off, and the nRF52840-based radio draws minimal power, so this node can run indefinitely in most environments with as little as an hour of sunlight per day.

The P1-Pro supports communication ranges up to 9km in open areas and can function as either a standalone node or a repeater to relay messages across your mesh. Built-in GPS provides real-time positioning, making it a solid option for remote area tracking and outdoor operations.

A Grove expansion port lets you connect environmental sensors (temperature, humidity, air quality) for remote monitoring applications.

Atlavox ships your solar node pre-flashed with the latest firmware — no assembly, flashing, or configuring required.

Key Features

✅ Solar Powered — 5W integrated solar panel with four 3,350mAh 18650 batteries for 24/7 operation
✅ Built-in GPS — XIAO L76K module with GPS, GLONASS, and Galileo support for real-time positioning and time-keeping
✅ Long Range — Up to 9km in open areas
✅ Meshtastic/MeshCore Ready — Pre-flashed with either Meshtastic or MeshCore firmware, no setup required
✅ Bluetooth 5.0 — Connect to the free Meshtastic or MeshCore app on your phone for configuration and messaging, or deploy it as a standalone repeater without needing to connect to your phone
✅ Low Power — nRF52840 processor optimized for energy efficiency
✅ Expandable — Grove port (I2C/GPIO) for plug-and-play sensor modules
✅ Outdoor Rated — includes pole and wall mounting brackets
✅ USB-C Charging — Charge via solar or USB-C when not deployed
✅ FCC & CE Certified

Specifications

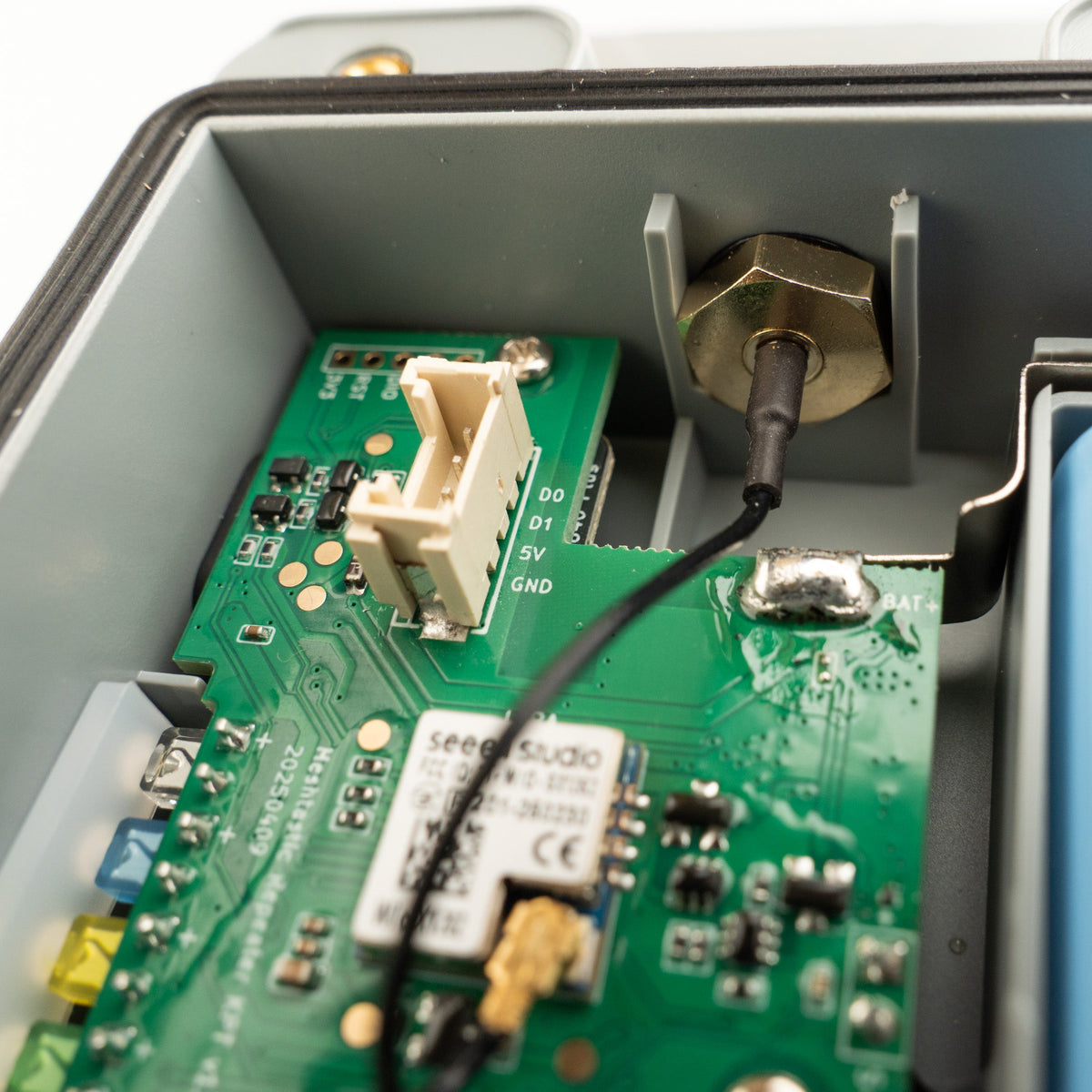

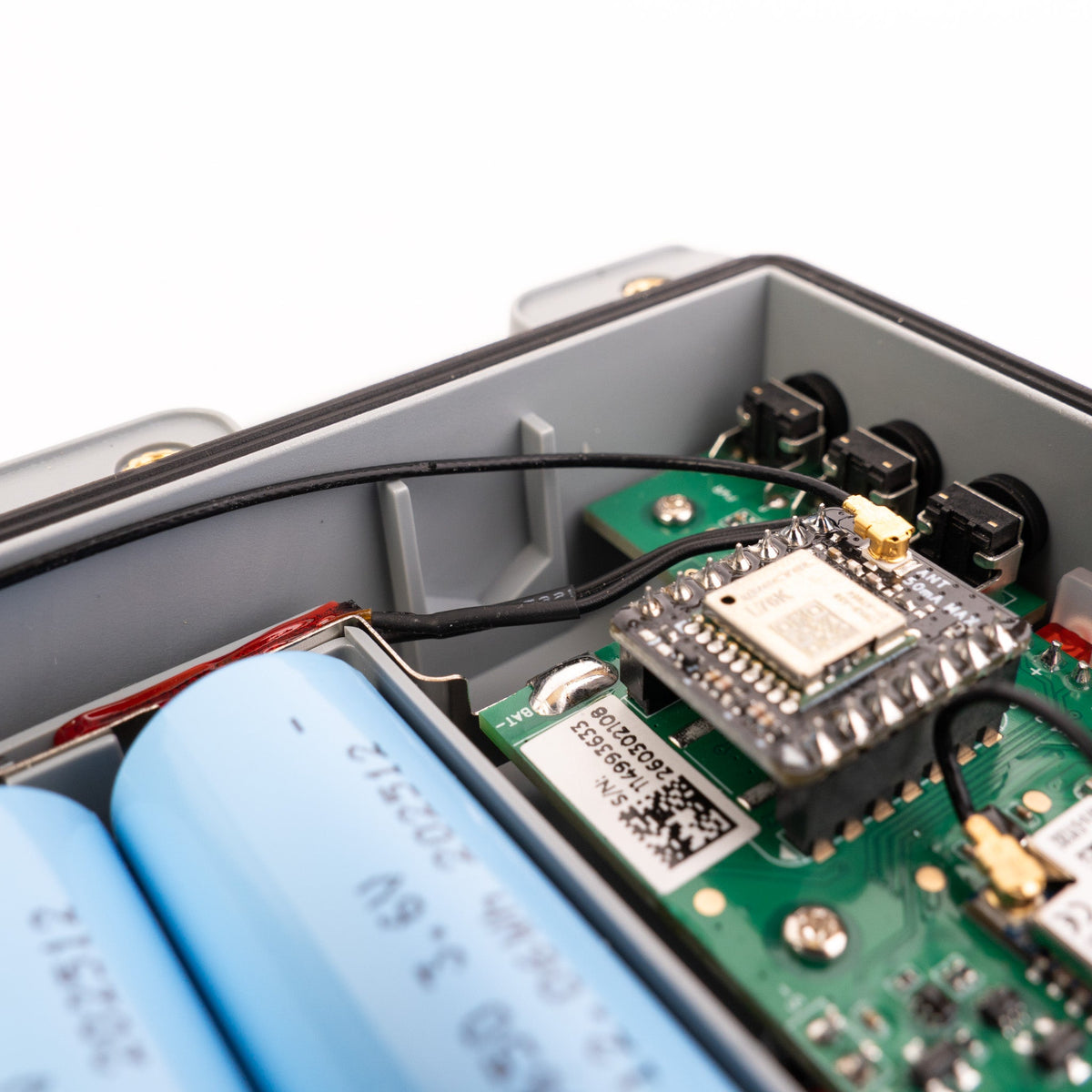

Main Controller	XIAO nRF52840 Plus (ARM Cortex-M4, 64MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash)
LoRa Module	Wio-SX1262 (Semtech SX1262)
TX Power	Up to +22 dBm
Frequency Range	862–930 MHz
GPS Module	XIAO L76K (GPS / GLONASS / Galileo)
Connectivity	Bluetooth 5.0, USB-C

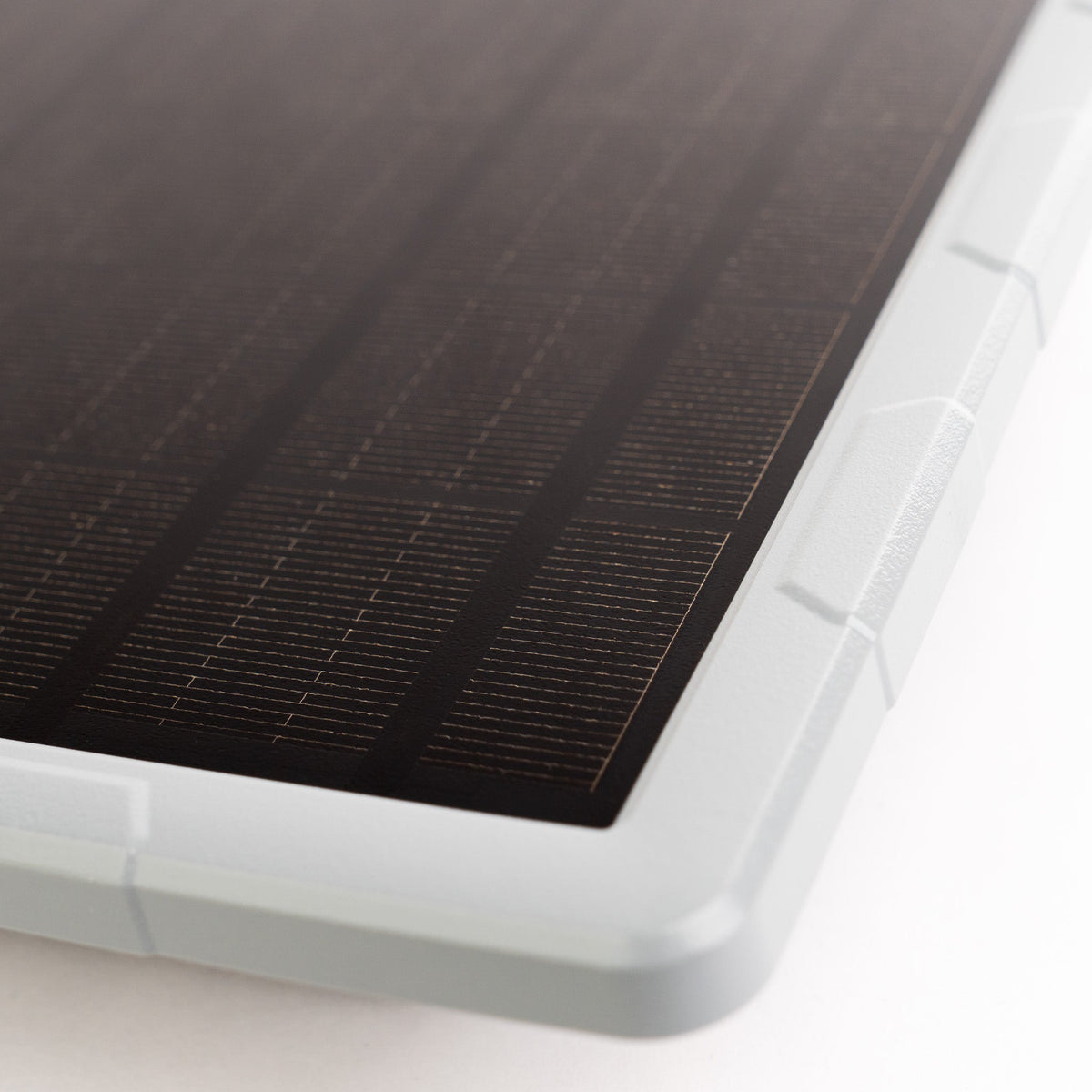

Solar Panel	5W integrated

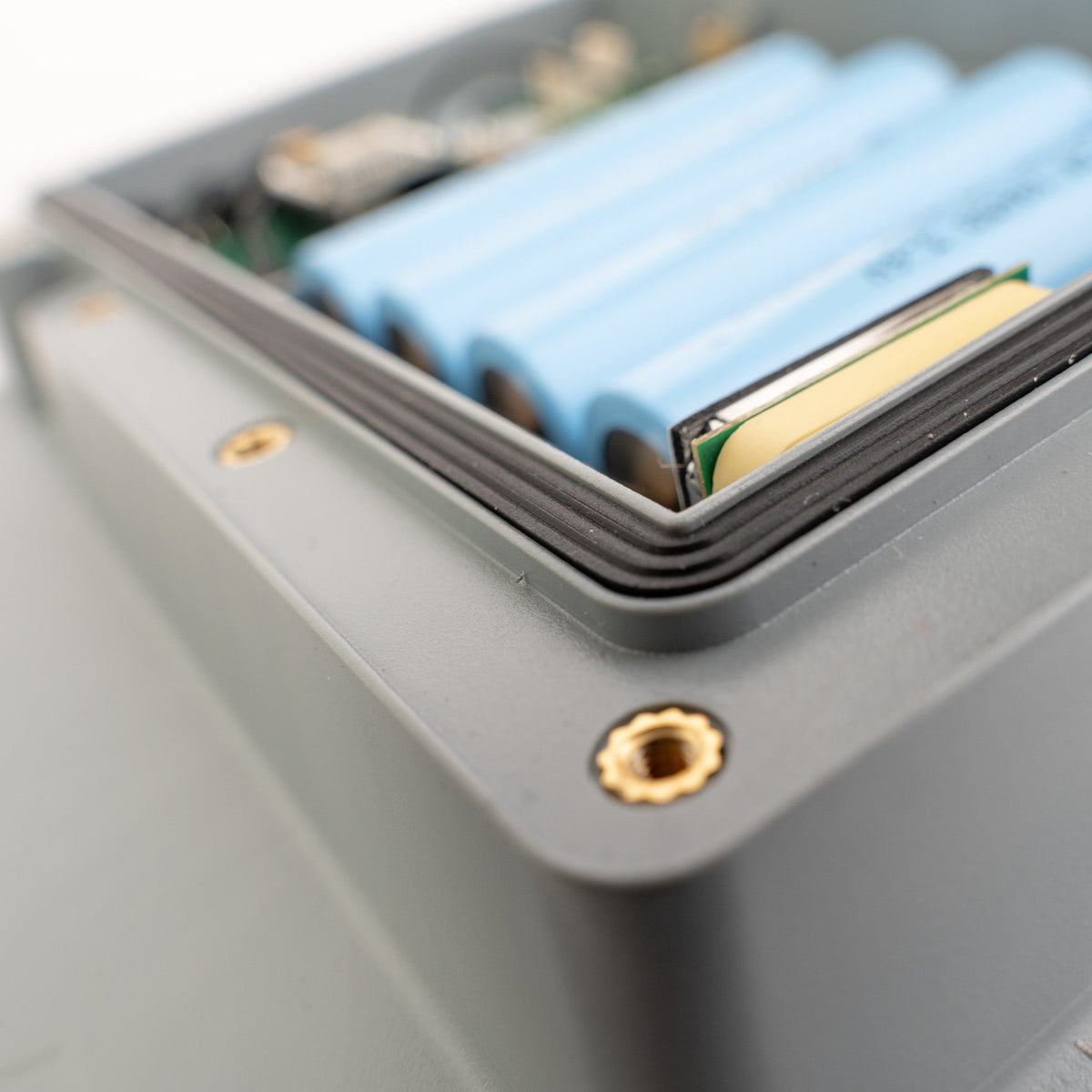

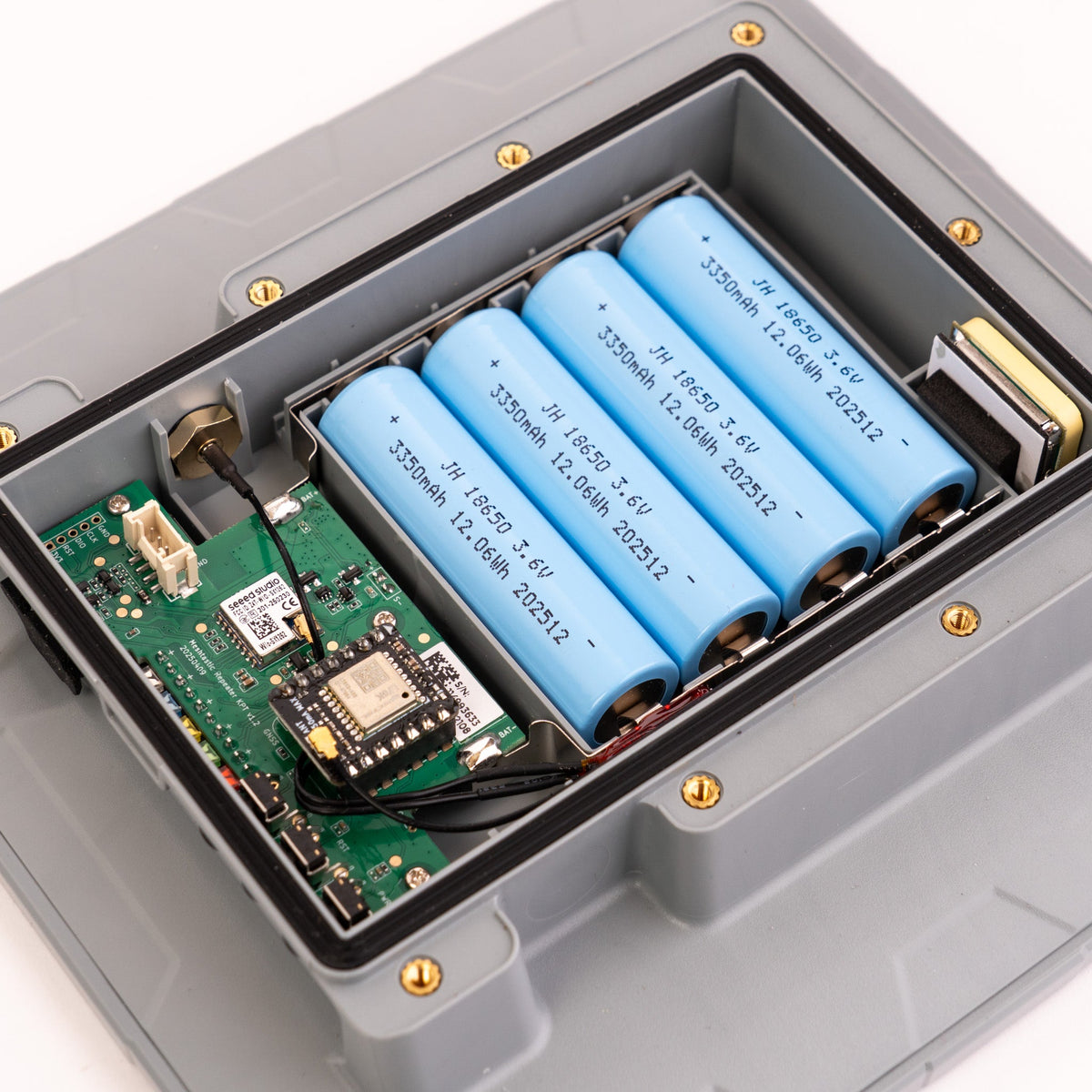

Battery	4× 18650 lithium-ion (3,350mAh each, button-top)
Charging	Solar + USB-C
Operating Temp (discharge)	-40°C to 60°C
Charging Temp	0°C to 50°C

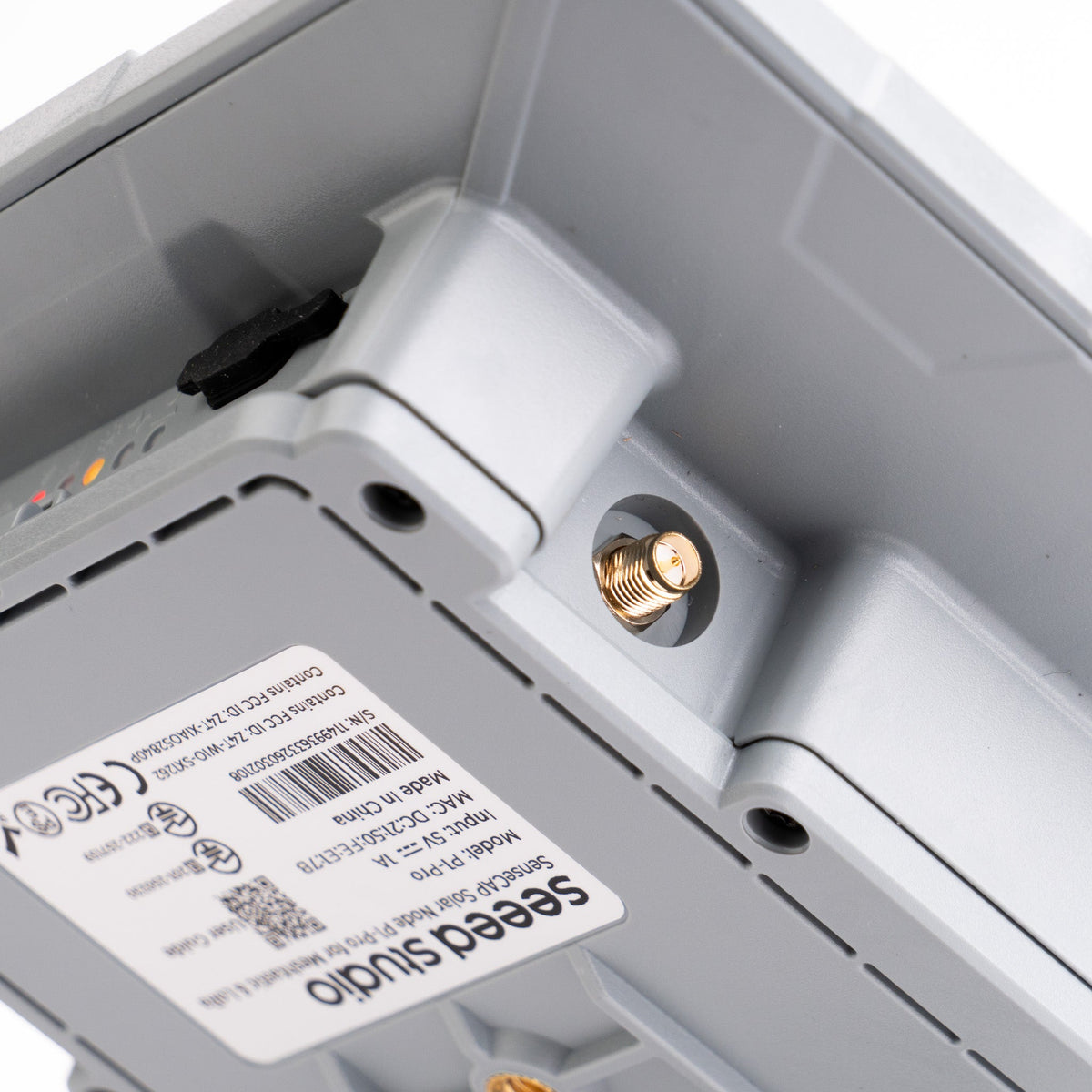

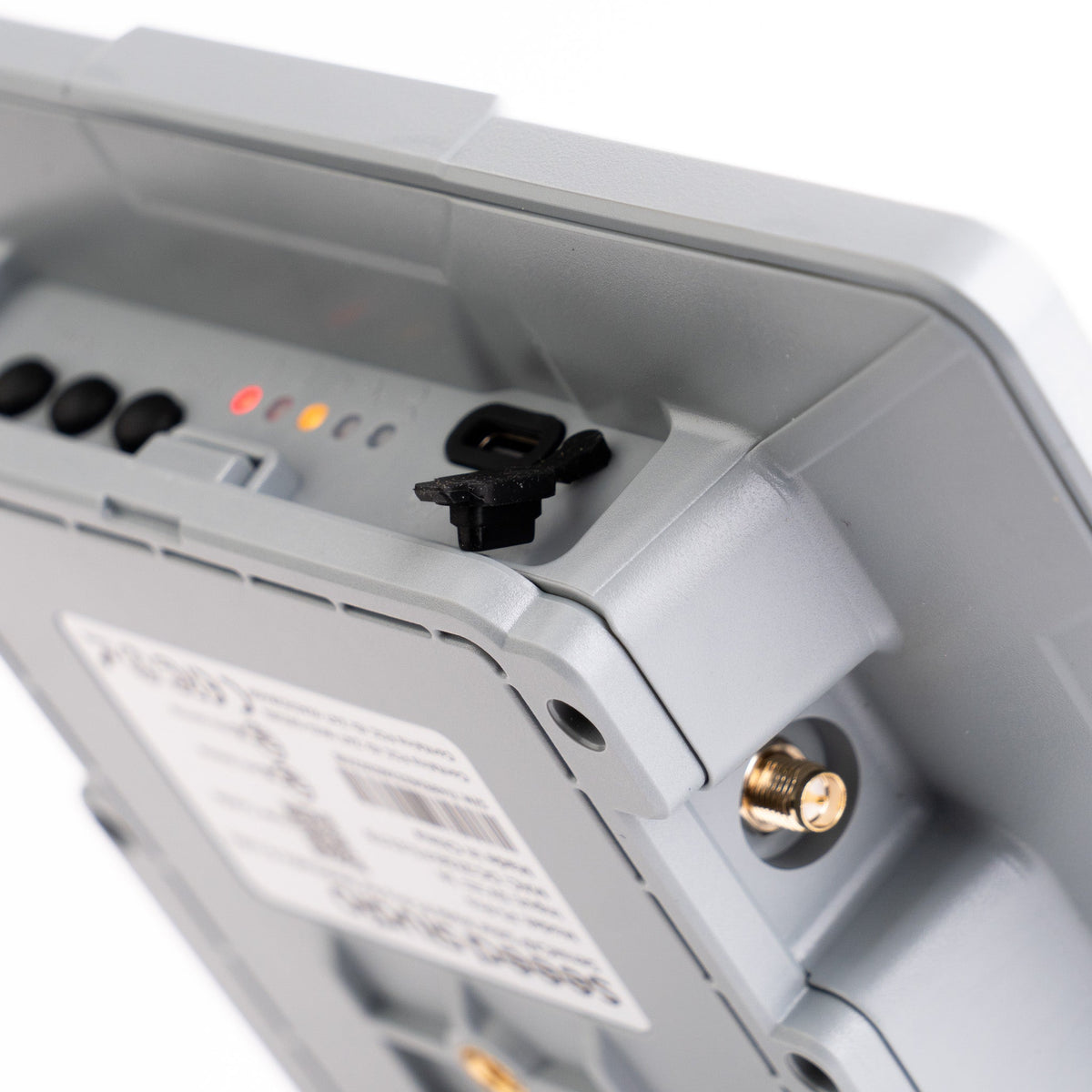

Antenna	2dBi rubber rod (868–915MHz), RP-SMA connector
Expansion	Grove port (I2C / GPIO)

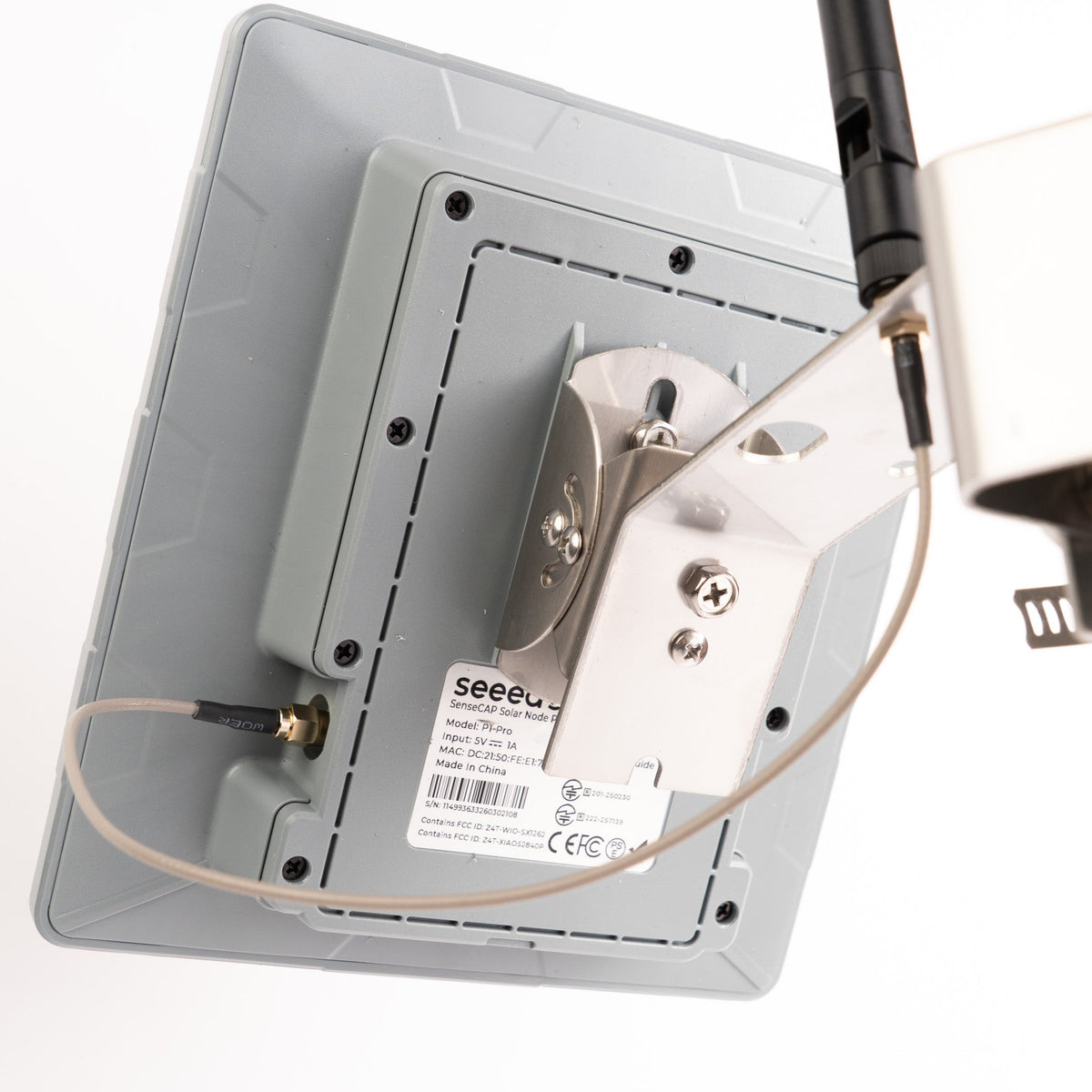

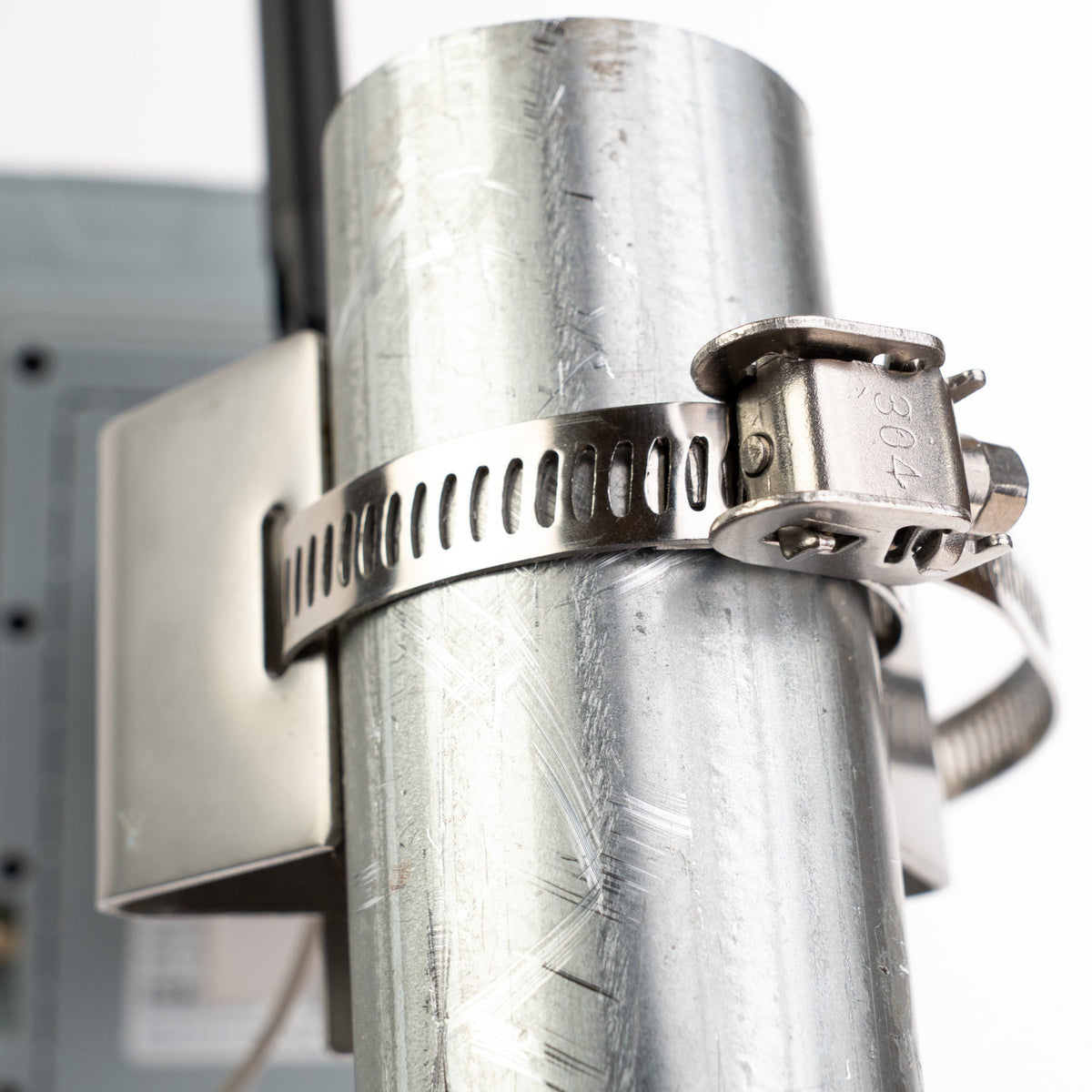

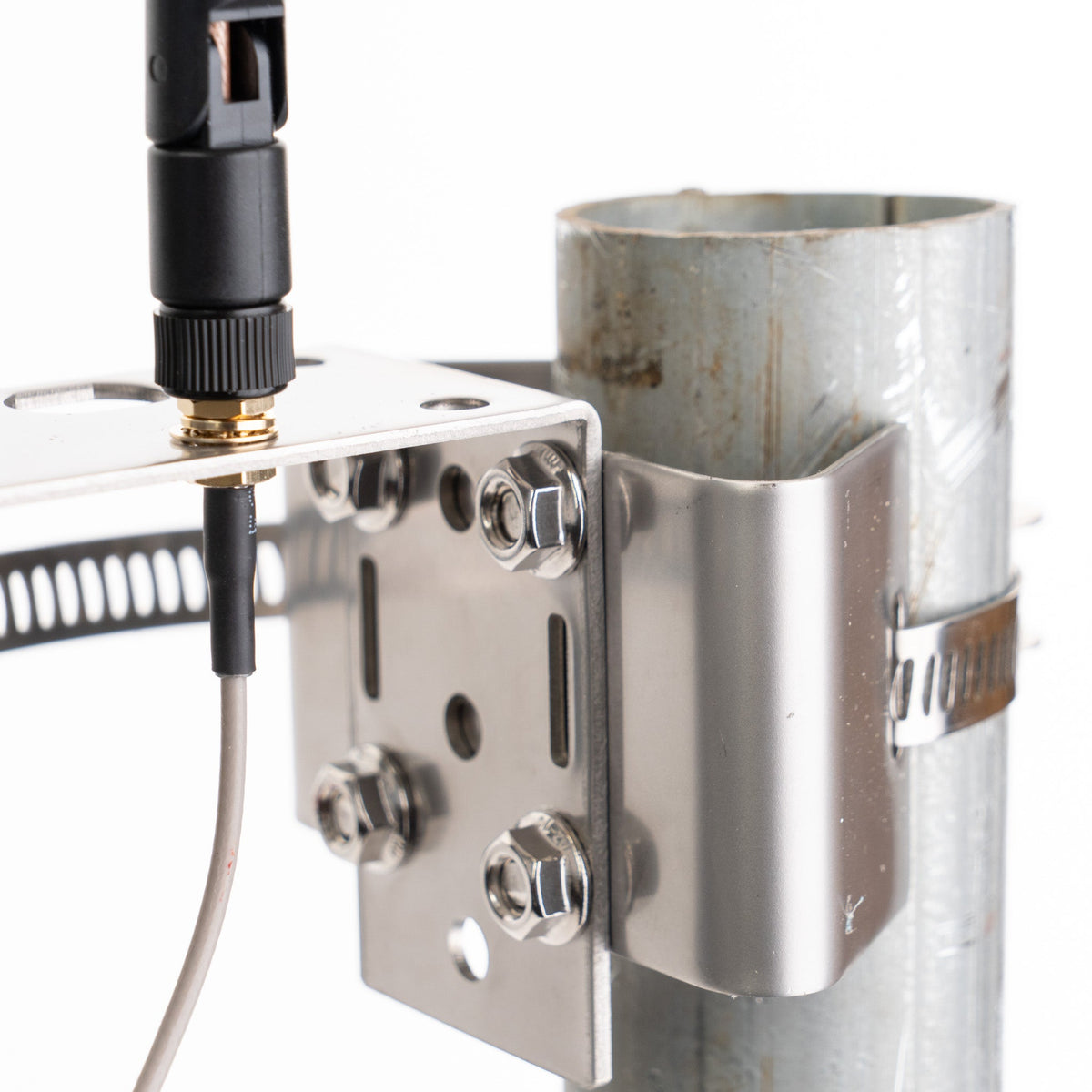

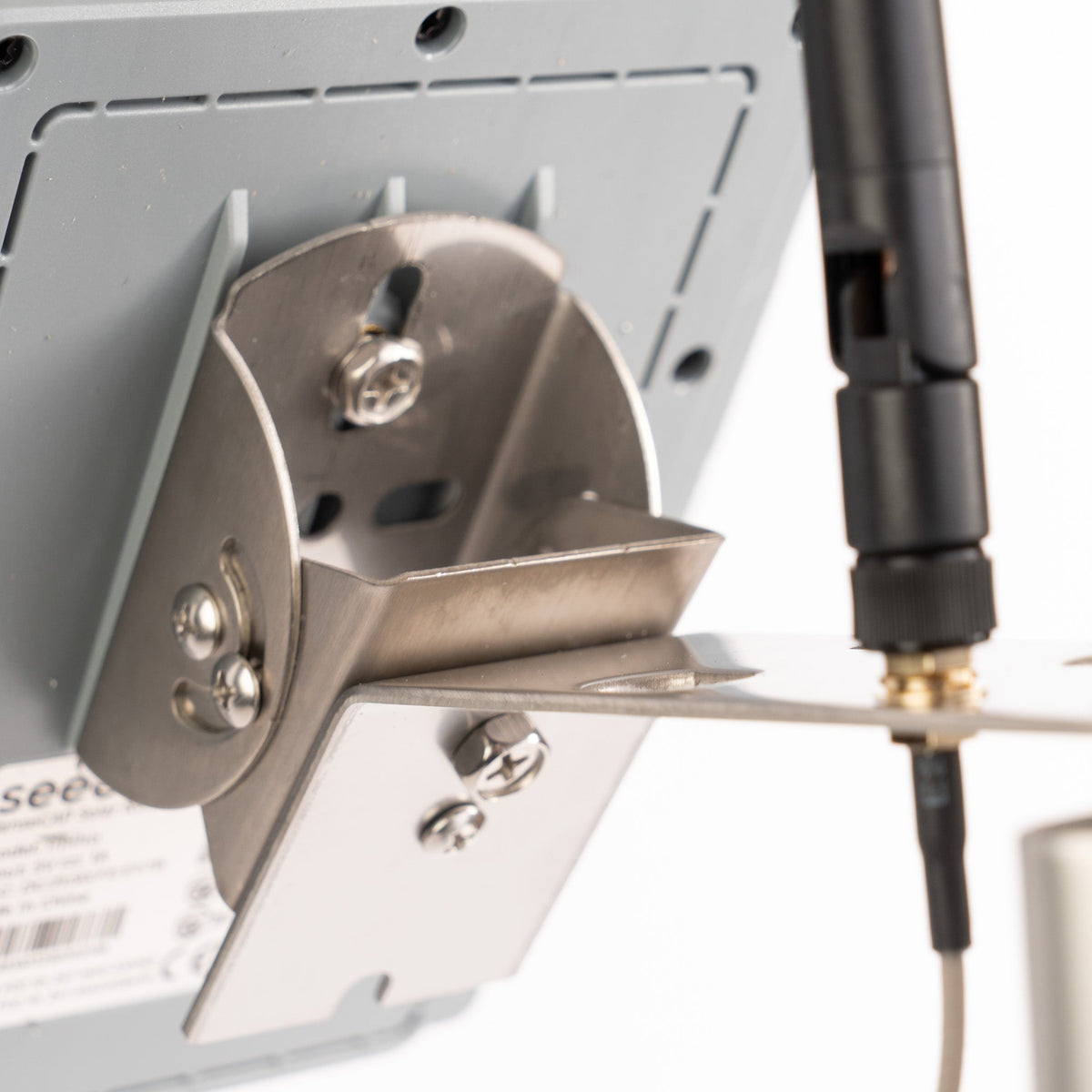

Mounting	Pole mount (70–100mm diameter) and wall mount brackets included
Certifications	FCC, CE, RoHS
Manufacturer	Seeed Studio

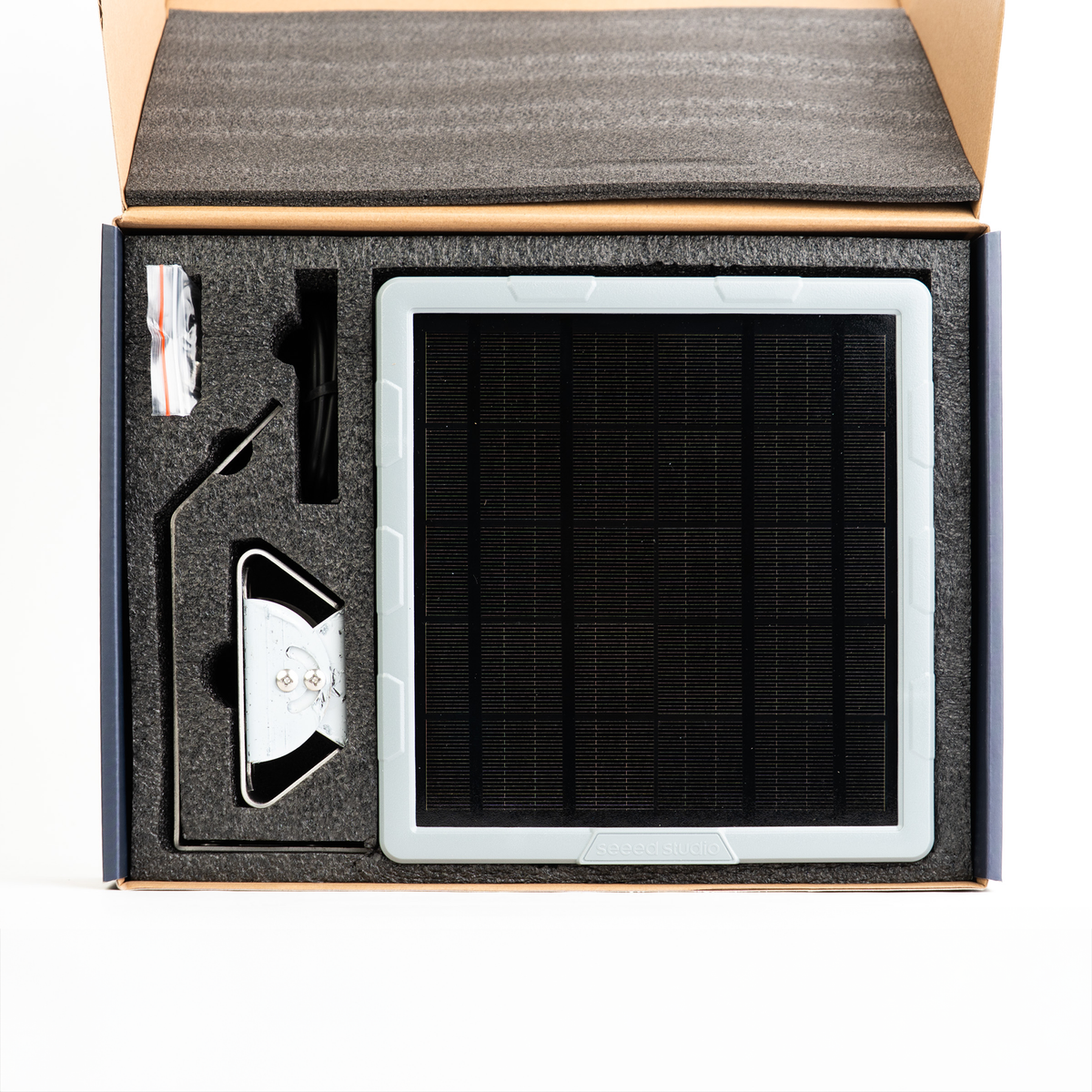

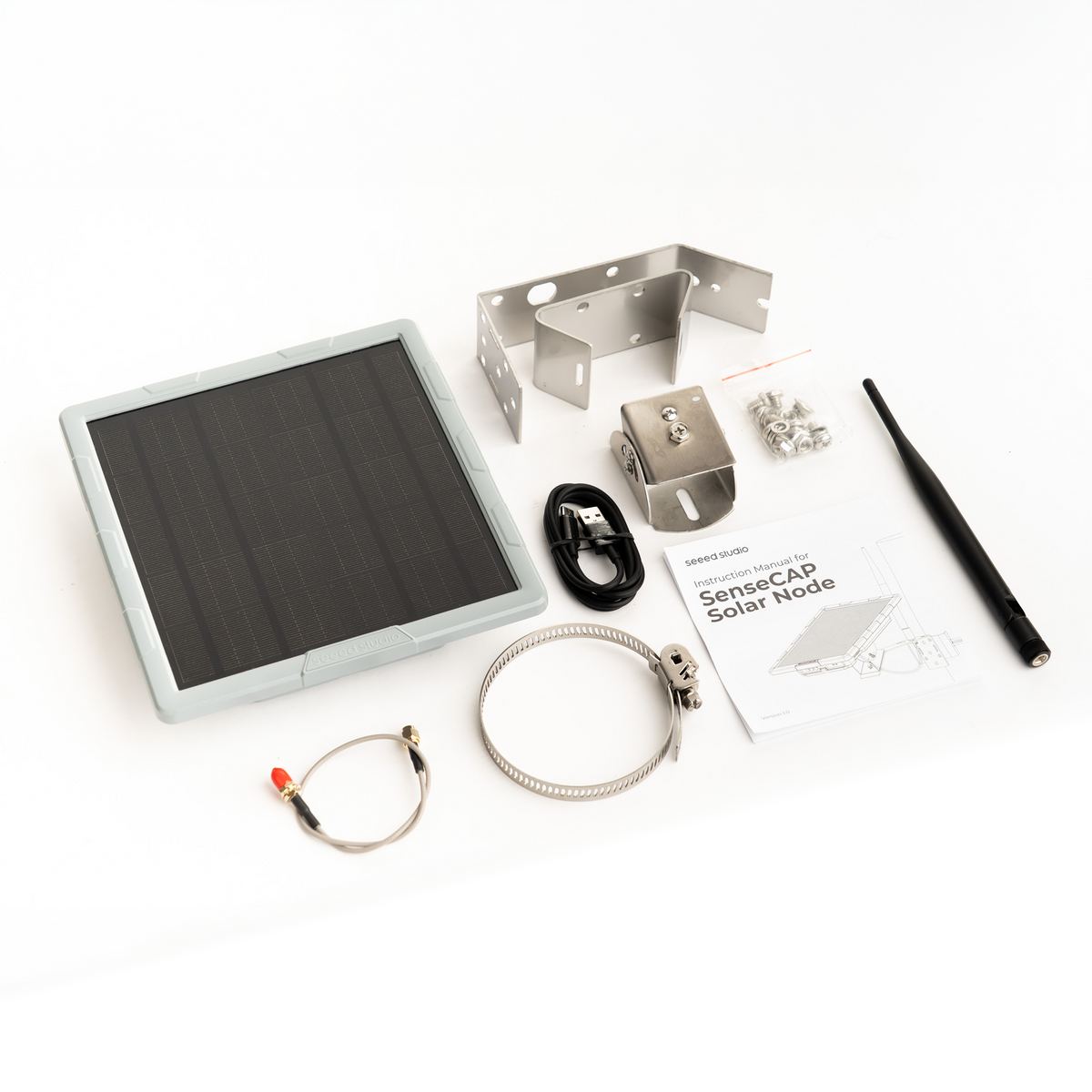

What's in the Box

SenseCAP Solar Node P1-Pro
4× 18650 batteries (pre-installed)
RP-SMA antenna of your choice
Antenna cable (RP-SMA Male to RF-SMA Female)

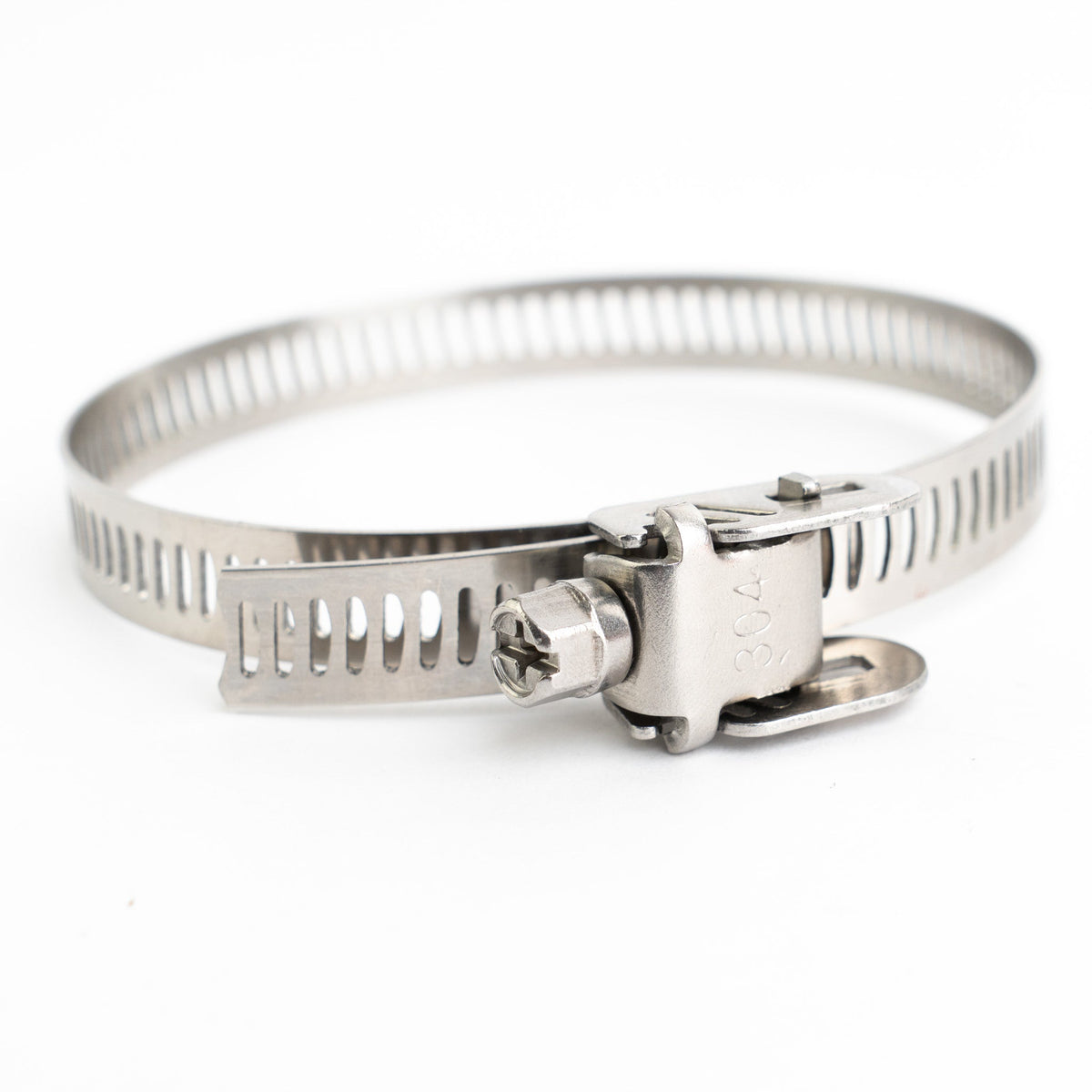

Mounting brackets and hardware (pole + wall mount)
USB-C cable

Use Cases

Mesh Network Expansion — Deploy as a solar repeater to fill coverage gaps and relay messages between nodes
Off-Grid Communication — Text and GPS in areas with no cell service
Outdoor Tracking — Real-time GPS positioning for remote operations, farms, parks, trails
Environmental Monitoring — Connect Grove sensors for temperature, humidity, and air quality data
Emergency Preparedness — Set-and-forget solar node for resilient off-grid comms
